Subassembly, Running Board Support, Welded Underframe

Drawing

-

The National Museum of Transportation

Full-size 300ppi digital scans of this drawing are available; please email us at museum@tnmot.org for more information.

Full-size 300ppi digital scans of this drawing are available; please email us at [email protected] for more information.

Name/Title

Subassembly, Running Board Support, Welded Underframe

Entry/Object ID

ACF 31-13919

Tags

ACF (American Car and Foundry), Digital/Physical

Description

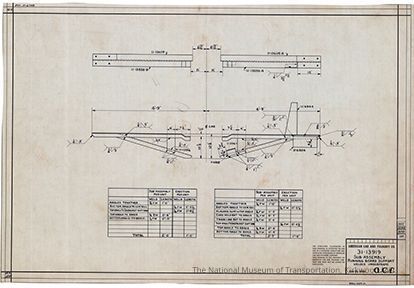

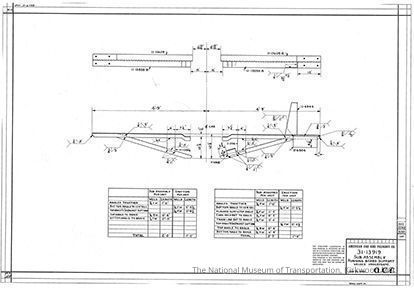

This technical drawing shows an ACF (American Car and Foundry) sub-assembly for a welded underframe running board support.

Type of Drawing

UD - Underframe Details

Artwork Details

Subject

FT - Freight - Tank Car

Collection

American Car & Foundry (ACF) Drawing Archive.

Category

Engineering Drawings / Blueprints

Made/Created

Artist

ACF draftsmen

Manufacturer

ACF (American Car and Foundry)

Date made

Nov 20, 1946

Time Period

20th Century

Place

City

Saint Charles

State/Province

Missouri

Country

United States of America

Continent

North America

Notes

Built for: : SCMX

Other Names and Numbers

Other Number

Lot Number(s): : 3148 3150 3352

Notes

LOT 3348/3352
