1964- Control Data 6600- Ferrite Core Memory **Tags
Control DataDescription

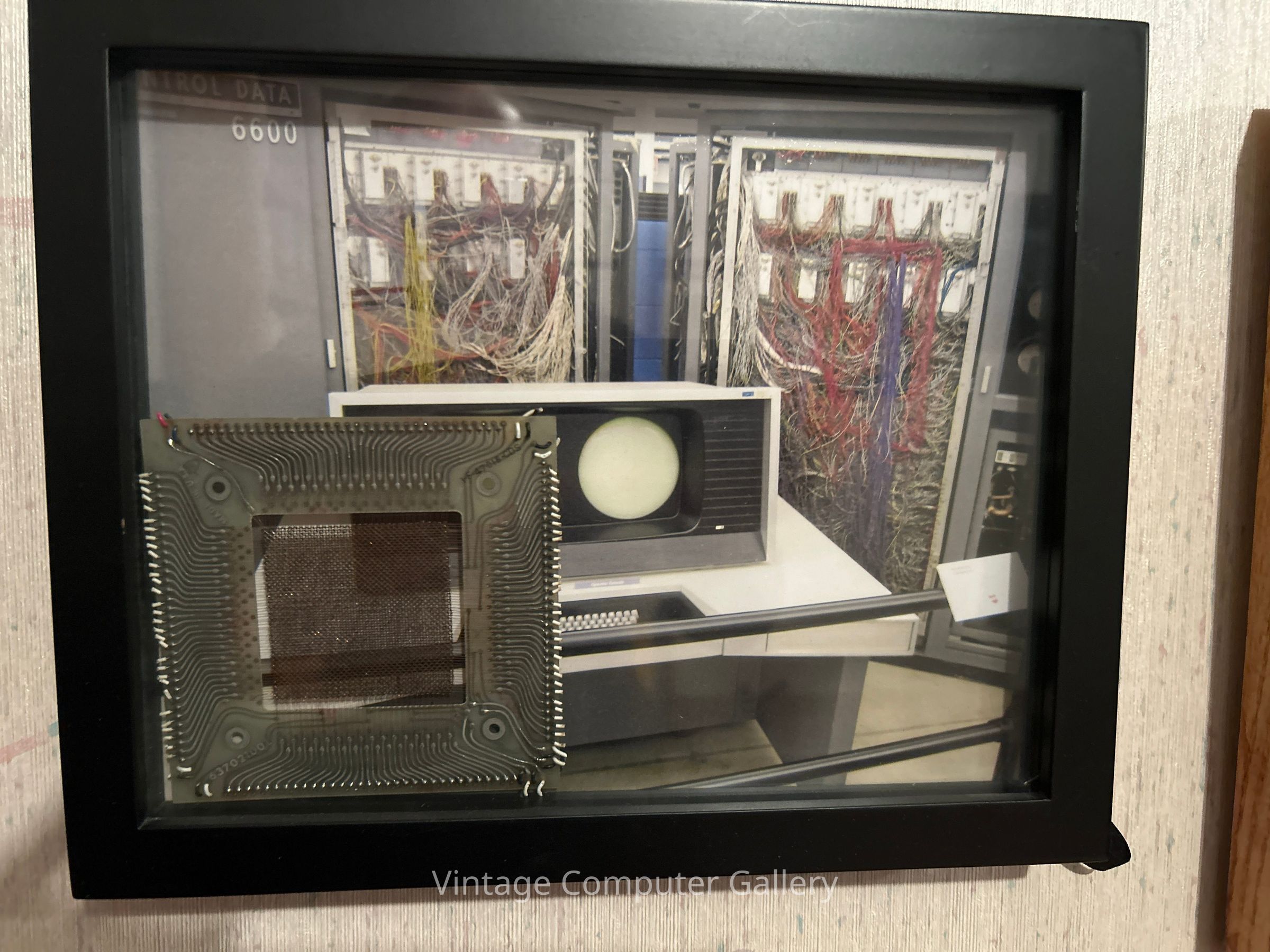

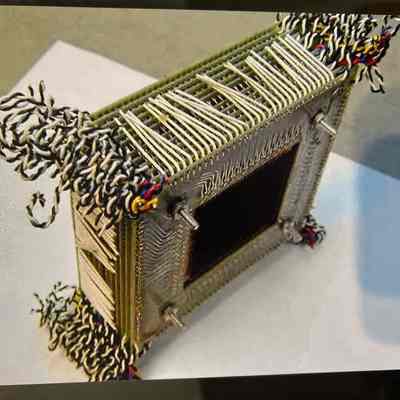

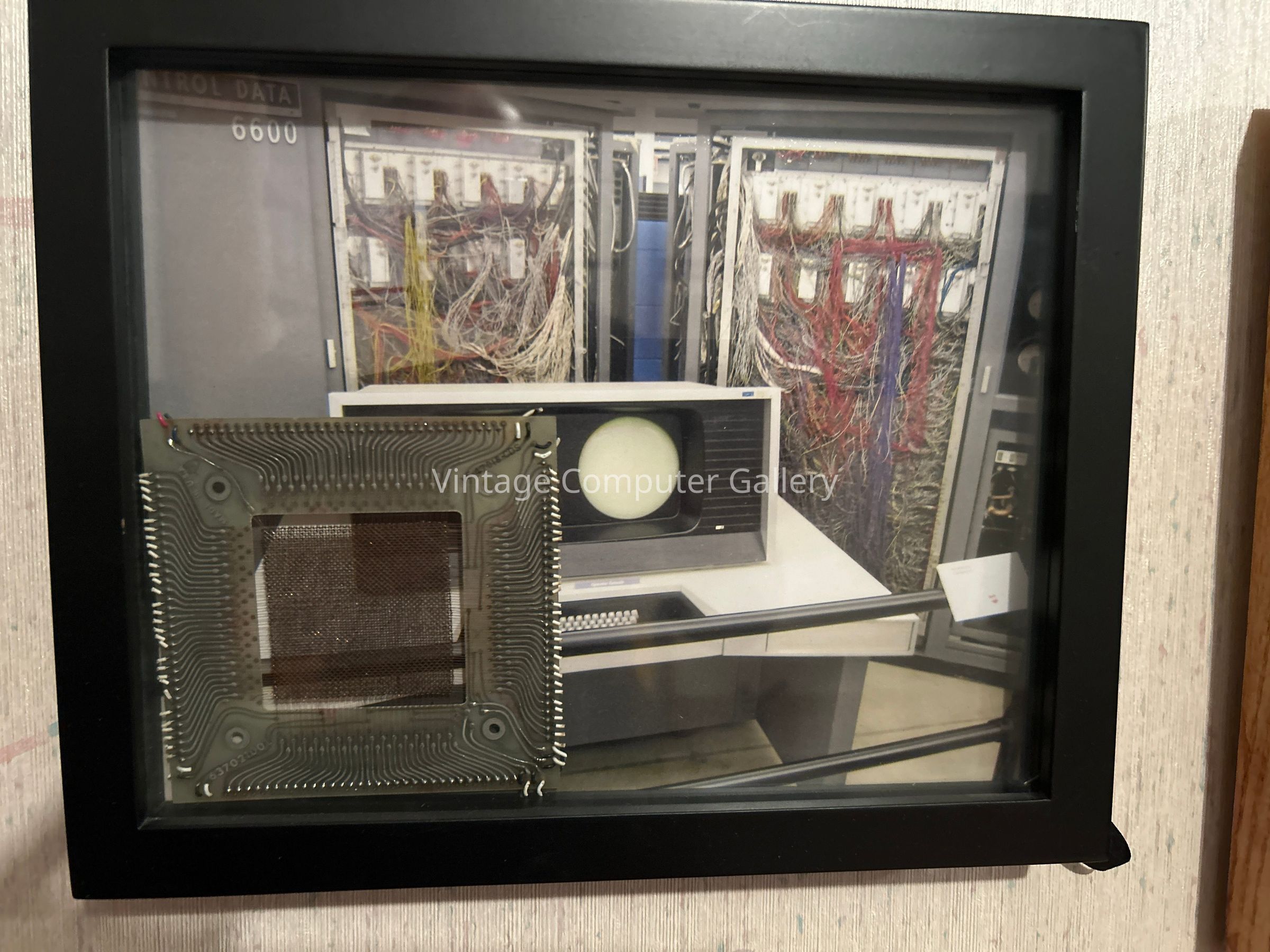

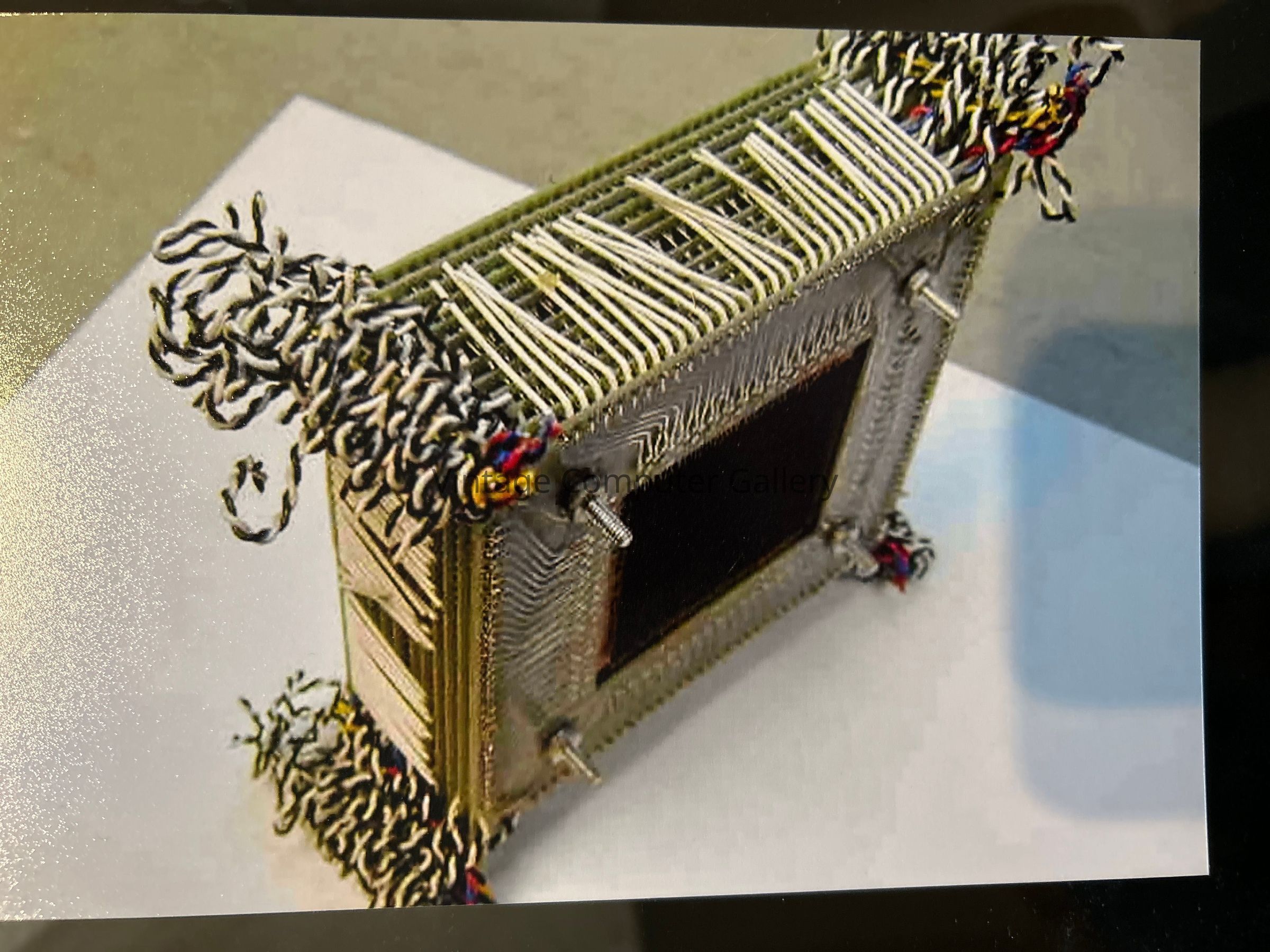

1964- Magnetic core memory, or ferrite-core memory (CDC 6600), is an early form of random access computer memory. It uses small magnetic ceramic rings, the cores, through which wires are threaded to store information via the polarity of the magnetic field they contain. Such memory is often just called core memory, or, informally, core.
Core relies on the hysteresis of the magnetic material used to make the rings. Only a magnetic field over a certain intensity (generated by the wires through the core) can cause the core to change its magnetic polarity. To select a memory location, one of the X and one of the Y lines are driven with half the current required to cause this change. Only the combined magnetic field generated where the X and Y lines cross is sufficient to change the state; other cores will see only half the needed field, or none at all. By driving the current through the wires in a particular direction, the resulting induced field forces the selected core's magnetic field to point in one direction or the other (north or south).
