Note
Key Features and Specifications
Manufacturer: Sanyo Electric Co. Ltd., Japan.
Manufacture Date: Produced around 1976, with some units dated as early as February 1976.

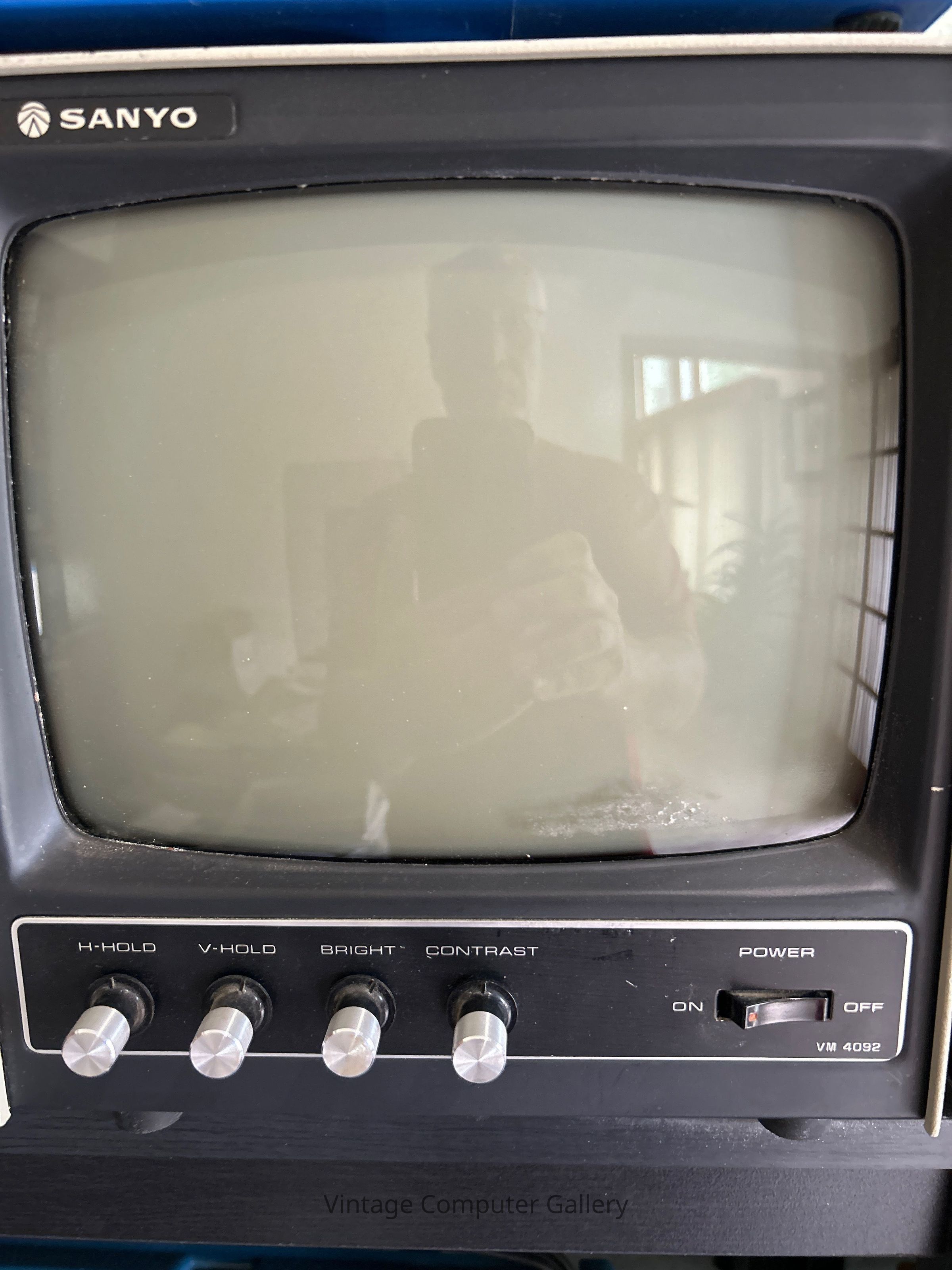

Display: 9-inch monochrome CRT, designed for composite video input, typically displaying in black and white or green phosphor.
Input: Features a 12V DC input, making it suitable for mobile applications like TV production vans or battery-powered setups, in addition to standard AC power (120V or modified for 220V in some regions).
Design: Compact and rugged, with a simple, utilitarian design. Early models had a particleboard or wooden back, while later ones used metal. Some units featured a carrying handle, though this was sometimes missing.
Connectivity: Equipped with a composite video input and a High/75 ohm switch to adjust brightness for different signal types.
Physical Description: Made of plastic and metal, with dimensions approximately 9 in x 10 in x 10.25 in (22.86 cm x 25.4 cm x 26.035 cm).
Historical Context and Use
Primary Use: The VM-4092 was not originally designed for computers but for applications like video production, security, or surveillance monitoring. Its adoption by early computer hobbyists, particularly for the Apple I and II, was due to its affordability and compatibility with composite video outputs, which were standard for early home computers.
Apple Connection: While the Sanyo VM-4209 is often cited as the most widely used monitor for the Apple I and II, the VM-4092 was also used, especially with early Apple I systems sold through the Byte Shop. Its simpler design (lacking a power LED and daughterboard PCB compared to the VM-4209) suggests it may have been a cheaper or earlier model.
Rarity: The VM-4092 is considered rare today, especially working units from 1976, and is highly sought after by vintage computing collectors. Prices on platforms like eBay have ranged from $400 to $5,000, depending on condition and provenance.
Technical Details
Circuitry: The VM-4092 has a simpler internal design compared to later models like the VM-4209 or VM-4902. It lacks a neckboard for the CRT (just a plain socket connection) and a rear-right daughterboard with focus jumpers, indicating a cost-optimized or earlier revision.
Power: The 12V DC input made it versatile for non-standard power sources, such as car batteries, which was unusual for monitors of the era and suggests its intended use in mobile or field applications.
Restoration Challenges: Restoring a VM-4092 can involve regenerating the CRT tube (e.g., using a Müter BMR 95 device to rejuvenate the cathode) and addressing issues like dim heating elements. Replacement parts, such as the Sanyo logo plaque or knobs, may need to be recreated via 3D printing or laser-etched aluminum.
Differences from Related Models
Sanyo VM-4209: The VM-4209, often dated 1977-1979, is similar but includes a power LED and a more complex internal design with a neckboard and daughterboard. The VM-4092 is considered an earlier or simpler version.
Sanyo VM-4509: A later model (circa 1981), with slight design updates but still used for similar applications.
Apollo Laser Industries Javelin VM-9A: A 1977 clone of the VM-4092, nearly identical in design but with different branding. The relationship between Sanyo and Apollo is unclear, with speculation about whether Apollo copied Sanyo or vice versa.
Collectibility and Condition
Condition: Many VM-4092 units sold today are listed as "for parts or not working" due to age-related issues like fuzzy pictures or worn CRT tubes. Fully functional units, especially from 1976, are rare and command high prices.
Restoration Efforts: Enthusiasts have restored units by repainting the housing to match the original "bad paint job" texture, polishing chrome parts, and recreating missing components like dials or logos.
Cultural Value: Its association with the Apple I, one of the first personal computers, makes the VM-4092 a significant artifact in computing history. It was used in environments like the Byte Shop, where the Apple I was sold, and is featured in collections like the Smithsonian's National Museum of American History.
Availability and Pricing
eBay Listings: Recent listings show VM-4092 monitors sold for $400 (working condition) to $1,600 (fully restored, 1976 model). High-priced units, like one listed for $5,000, often reflect their rarity or collectible status rather than functionality.
Market Notes: Buyers should verify functionality, as many units require repair. Missing components (e.g., knobs or handles) are common, and some sellers offer 3D-printed replacements.
Additional Notes
Service Manual: The VM-4209 service manual is often used for the VM-4092, as they share many similarities, though minor differences exist.
Cultural Significance: The VM-4092 represents a pivotal moment in the transition from industrial monitors to home computing displays, reflecting the DIY ethos of early computer enthusiasts.
